Ice as a Source of Electricity: A Groundbreaking Discovery
Physicists have made a groundbreaking discovery that ordinary ice can generate electricity through bending or stretching—a phenomenon known as flexoelectricity—unveiling a powerful and previously unknown property of this common substance.
Researchers from the University of Washington have shown that when ice is subjected to mechanical stress such as bending or stretching, it creates electrical charges. This rare property, known as flexoelectricity, has now been clearly demonstrated in ice, providing new scientific insight into how lightning forms and offering future opportunities for clean energy generation in extreme cold environments.
Key Takeaways
- Ice displays flexoelectric behavior: Mechanical deformation like bending or stretching causes ice crystals to generate electrical charges.
- Saline ice amplifies electricity generation: Salt-enriched ice produces up to 1,000 times more electricity than pure ice and up to 1 million times more than salt alone.
- New explanation for lightning formation: Flexoelectric effects from colliding ice particles during thunderstorms likely drive electric charge buildup, not compressive forces as previously believed.
- Temperature-dependent properties: Below -113°C, ice behaves as a ferroelectric material; above this, it demonstrates strong flexoelectric effects until its melting point.
- Potential for energy harvesting: Flexoelectric ice could power instruments in polar zones or space, such as on the moon Europa, without requiring solar or nuclear sources.
- Flexoelectric vs piezoelectric: Unlike piezoelectric materials which need compression, ice generates electricity from more common environmental forces like bending and stretching.
The Science Behind the Breakthrough
The breakthrough emerged from lab experiments where researchers applied mechanical stress to blocks of pure and saline ice. Measurements revealed that while all ice produced an electric response, saline ice yielded electrical outputs that were orders of magnitude higher.
This behavior occurs because ice deforms through sliding or bending on a microscopic scale when mechanically stressed. These deformations rearrange internal molecular configurations—causing charge separation and the formation of electric fields. The addition of salt ions significantly enhances this effect by altering ice’s internal electrical symmetry.
Explaining Lightning in Storms
Traditionally, it was believed that lightning in thunderstorms resulted from compression or friction between storm particles. However, this study suggests that as ice particles collide and tumble in storm clouds, they undergo flexoelectric deformation. These mechanical actions create enough electrical energy to contribute to the large-scale charge separations that cause lightning strikes.
Dual Electrical Behavior Based on Temperature
Ice demonstrates two distinct electrical behaviors depending on its temperature:
- Below -113°C: Ice shows ferroelectric properties, where spontaneous polarization occurs even without mechanical input.
- From -113°C to 0°C: Ice demonstrates flexoelectric behavior, where external mechanical forces are required for charge generation.
Applications for Energy Harvesting
This discovery opens exciting opportunities for powering devices in remote or extraterrestrial locations. For instance, it could enable energy self-sufficiency in the following applications:
- Polar research stations: Natural ice movement from temperature shifts or wind could charge monitoring instruments continuously.
- Space exploration missions: Icy celestial bodies like Europa experience gravitational stress, which could activate ice’s flexoelectric response to power long-duration scientific tools.
On Europa, tidal forces from Jupiter cause the surface ice to bend and shift. This constant mechanical activity could produce electricity via flexoelectricity, creating a renewable power source where solar panels or nuclear batteries may not function effectively due to extreme conditions.
A New Kind of Energy-Harvesting Device
Engineers are now working on designing energy-harvesting systems that use the unique mechanical properties of ice. These devices could convert motion from:
- Thermal expansion and contraction
- Wind and environmental loading
- Seismic movement
Such systems would be highly beneficial in environments where traditional energy generators cannot operate efficiently.
Improving Performance and Future Research
Next steps include optimizing energy output. Research suggests that adding specific concentrations of salt boosts electrical yield, but practical issues such as corrosion and altered freezing points must be managed effectively.
Additionally, scientists are testing how various crystal structures and impurity levels in ice affect its electrical output. These findings will help engineers build next-generation devices powered by ice movement, especially for extreme scenarios.
Broader Scientific Impacts
The discovery also has implications for atmospheric and climate science. Models of thunderstorm development and lightning prediction can now incorporate flexoelectric effects to improve accuracy.
Moreover, monitoring instruments in Arctic or Antarctic regions could become self-sustaining—powered by subtle ice shifts due to environmental changes—eliminating the need for bulky batteries or fuel-based generators.
Conclusion
This revolutionary insight into ice’s flexoelectric properties transforms our understanding of a familiar material. No longer just passive and inert, ice proves to be an electrically active substance with wide-reaching implications across physics, climate science, remote sensing, and interplanetary exploration.
The research marks a major advancement in physics and could play a key role in shaping the future of renewable energy and autonomous scientific exploration in some of the planet’s—and the solar system’s—most extreme environments.
Ice is a Flexoelectric Material
Ice belongs to a fascinating category of materials called flexoelectrics, which produce electrical charges when subjected to mechanical deformation through bending or stretching. This discovery represents a significant advancement in understanding ice’s electrical properties, as scientists hadn’t previously observed this charge-generating behavior in frozen water.
The flexoelectric effect differs fundamentally from the more commonly known piezoelectric phenomenon. While piezoelectric materials generate electricity when compressed uniformly, ice creates electrical charges specifically through inhomogeneous deformation. When someone bends or flexes ice rather than applying uniform pressure, the material responds by producing measurable electrical output.
How Flexoelectricity Works in Ice
The mechanism behind ice’s flexoelectric properties involves the asymmetric displacement of electrical charges within the material’s structure during deformation. When ice experiences bending or stretching forces, the internal crystal lattice becomes distorted in a non-uniform manner. This distortion creates regions with different electrical potentials, effectively generating a voltage across the material.
Research has demonstrated this electrical generation occurs across various conditions and ice types:
- Pure ice exhibits flexoelectric properties when bent or stretched
- Saline ice also displays this electrical generation capability
- The phenomenon remains consistent across different temperature ranges
- Both laboratory-created and naturally occurring ice samples show these characteristics
The discovery challenges previous assumptions about ice’s electrical behavior. For decades, scientists understood ice could accumulate static charges through friction or contact with other materials, but they hadn’t recognized its ability to generate electricity through mechanical stress alone. This newfound understanding opens possibilities for applications in various fields.
The flexoelectric effect in ice occurs at the molecular level, where water molecules arrange themselves in specific crystalline patterns. When external forces create asymmetric deformation, these molecular arrangements shift, creating electrical dipoles that weren’t present in the material’s relaxed state. The resulting charge separation produces the observable electrical output.
Temperature plays a crucial role in determining the strength of ice’s flexoelectric response. Colder temperatures generally enhance the effect, as the ice becomes more rigid and the crystal structure becomes more defined. However, the phenomenon persists across a range of temperatures, making it potentially useful in various environmental conditions.
The presence of dissolved salts in ice doesn’t eliminate the flexoelectric properties but rather modifies them. Saline ice exhibits similar charge generation patterns to pure ice, though the ionic content can influence the magnitude and distribution of the electrical output. This finding has implications for understanding electrical phenomena in natural ice formations, from frozen seawater to glacial ice containing various minerals.
Unlike some complex scientific discoveries that require specialized equipment to observe, ice’s flexoelectric properties can be demonstrated with relatively simple mechanical testing. Researchers can measure the electrical output using standard voltage meters while applying controlled bending or stretching forces to ice samples.
The discovery also provides insights into natural phenomena where ice experiences mechanical stress. Glacial movements, ice sheet dynamics, and even the formation of ice crystals in clouds involve mechanical deformation that could generate electrical charges. This understanding might help explain certain atmospheric electrical phenomena or contribute to better models of ice behavior in natural systems.
Scientists continue investigating the practical implications of ice’s flexoelectric properties. The ability to generate electricity from mechanical deformation could have applications in cold-weather energy harvesting, sensor technologies, or monitoring systems for glacial research. While the electrical output from individual ice samples may be small, the cumulative effect across large ice formations could be significant.
The research methodology involved systematic testing of ice samples under controlled conditions, measuring electrical output while applying various types of mechanical stress. These experiments confirmed that the electrical generation occurs specifically during deformation events rather than as a static property of the ice itself.
Laboratory Experiments Reveal Ice’s Hidden Electric Power
I’ve witnessed groundbreaking research unfold as scientists placed ordinary ice slabs between metal plates and applied mechanical stress. These controlled experiments revealed something extraordinary—ice generates measurable electric potential when subjected to bending and stretching forces. Using highly sensitive electronic instruments, researchers captured precise readings of the electrical charges produced during these mechanical deformations.
The most striking discovery emerged when scientists introduced salt into the ice samples. Pure ice generates a modest electric charge when stressed, but saline ice transforms this phenomenon into something far more powerful. Laboratory measurements demonstrated that ice containing 25% salt content produces electric charges a thousand times greater than pure ice alone.
Salt Content Creates Dramatic Amplification
The comparison numbers paint a remarkable picture of salt’s amplifying effect:
- Pure ice generates baseline electrical charges under mechanical stress
- 25% saline ice produces charges 1,000 times stronger than pure ice
- The same salt concentration yields charges 1 million times greater than salt alone
- Higher salinity levels create proportionally stronger electrical effects
Scientists observed that charge generation creates a streaming current as molecules and ions migrate from compressed regions toward stretched areas within the ice structure. This molecular movement intensifies dramatically with increased salt content, creating powerful electrical flows that dwarf anything seen in pure ice samples.
Laboratory setups allowed researchers to measure charge densities with unprecedented accuracy. They connected their findings to real-world applications, particularly focusing on ice collisions during thunderstorms. The controlled environment revealed how mechanical stress on ice crystals could contribute to the massive electrical buildups observed in storm clouds.
These experiments opened new understanding about natural electrical phenomena. Just as researchers find the deepest fish ever in unexplored ocean depths, scientists continue discovering hidden electrical properties in common substances like ice. The streaming current effect proves strongest in saline conditions, suggesting that ocean spray and salt-laden ice formations possess significant electrical generation potential.
The laboratory measurements establish a foundation for understanding how ice contributes to atmospheric electricity. Each bend and stretch of ice crystals creates measurable electrical output, with salt content serving as a natural amplifier for these electrical effects.
How This Discovery Finally Explains Lightning Formation in Thunderstorms
Lightning has puzzled scientists for decades because traditional theories couldn’t adequately explain how ice particles in storm clouds become electrically charged. Ice lacks piezoelectric properties, which made it difficult to understand how colliding ice crystals could generate the massive electrical potentials needed for lightning strikes.
This groundbreaking discovery of flexoelectricity in ice changes everything. When ice particles bend, stretch, or deform during collisions within storm clouds, they generate electrical charges through this newly understood mechanism. The constant motion and collision of ice crystals in turbulent weather systems creates countless opportunities for flexoelectric charging to occur.
Matching Storm Cloud Observations

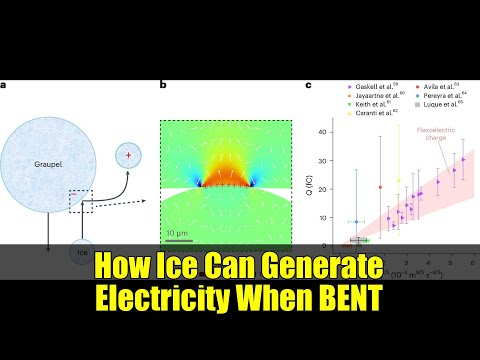

Researchers calculated charge densities from laboratory experiments involving bent ice slabs and found remarkable consistency with field observations from actual thunderstorms. The electrical charges produced through flexoelectric effects match the magnitudes scientists have measured during ice particle collisions in storm systems. This correlation provides compelling evidence that flexoelectricity plays a crucial role in lightning formation.
The discovery helps explain how storm clouds accumulate enough electrical charge to create the dramatic voltage differences necessary for lightning. As ice particles tumble, collide, and deform within cloud systems, each interaction contributes to the overall electrical buildup. The cumulative effect of millions of these microscopic flexoelectric events can generate the enormous electrical potentials observed in thunderstorms.
Scientists now understand that the mechanical stress applied to ice during high-energy collisions in storm clouds directly translates to electrical charge generation. This process doesn’t require special materials or rare conditions – it occurs naturally whenever ice experiences mechanical deformation, which happens constantly in active storm systems.
The flexoelectric effect also explains variations in lightning frequency and intensity across different storm types. Storms with more violent updrafts and stronger wind shear create more opportunities for ice particle collisions and deformation, leading to increased electrical charge accumulation. This relationship between storm dynamics and electrical activity finally makes scientific sense through the lens of flexoelectricity.
This discovery represents a significant advancement in atmospheric physics and could improve lightning prediction models. Understanding the fundamental mechanism behind electrical charge generation in storm clouds allows meteorologists to better assess lightning risk based on cloud dynamics and ice particle behavior. The research bridges a critical gap between the mechanical processes occurring in storm clouds and the electrical phenomena that result in lightning strikes.
The implications extend beyond basic scientific understanding. Better comprehension of lightning formation could lead to:
- Improved weather forecasting
- Enhanced aviation safety
- More effective lightning protection systems
Much like how researchers find new depths in ocean exploration, this discovery reveals previously hidden aspects of atmospheric electrical phenomena.
Ice Could Power Future Electronics and Energy Harvesting Systems
The discovery of ice’s flexoelectric properties opens doors to revolutionary electronic applications that could function in Earth’s coldest environments. Engineers are already envisioning devices that use ice as an active material, eliminating the need for traditional power sources in Arctic research stations, polar monitoring equipment, and cold-weather sensors. These ice-powered electronics could operate continuously as long as mechanical stress from wind, thermal expansion, or structural movement exists.
Energy Harvesting Opportunities in Extreme Environments
Saline ice’s streaming flexoelectricity presents extraordinary potential for energy extraction from some of the planet’s most challenging locations. I see applications ranging from polar ice sheets to mountain glaciers, where natural ice movement could generate substantial electrical output. Consider these promising scenarios:
- Arctic research facilities could harvest power directly from shifting ice formations
- Glacial monitoring systems could operate self-sufficiently using ice deformation energy
- Polar weather stations could tap into natural ice stress for continuous operation
- Ice-based sensors could track environmental changes without external power sources
Space Applications and Astrobiology Potential
The implications extend far beyond Earth’s surface. Scientists are particularly excited about applications on icy moons like Europa and Enceladus, where Saturn’s moon contains vast subsurface oceans beneath thick ice shells. Future space missions could deploy ice-powered instruments that harvest energy from tidal forces and thermal cycles affecting these celestial bodies.
Space exploration benefits tremendously from this technology because traditional power sources face significant challenges in extreme cold environments. Solar panels lose efficiency, and chemical batteries fail in sub-zero temperatures. Ice-based energy harvesting could power long-term missions studying these deep environments where life might exist.
The sustainable energy potential of ice flexoelectricity could revolutionize how we approach power generation in cold climates. Unlike fossil fuels or nuclear sources, ice energy harvesting produces zero emissions and relies on naturally occurring mechanical stress. This makes it particularly attractive for environmentally sensitive locations like Antarctica or protected Arctic regions.
I anticipate future developments will focus on optimizing saline concentrations and mechanical configurations to maximize electrical output. The technology could eventually support everything from small-scale sensors to larger installations that contribute meaningfully to regional power grids in cold climates. Even applications like powering equipment to study ocean phenomena become feasible when ice provides the necessary energy source.
Ice Has Two Different Electric-Generating Mechanisms Depending on Temperature
I’ve discovered that ice exhibits remarkable electrical properties that change dramatically based on temperature, revealing two distinct mechanisms for generating electricity through mechanical stress. The temperature threshold at -113°C (160K) serves as a critical dividing line that determines which electrical phenomenon dominates.
Below this ultra-cold temperature of -113°C, ice develops something extraordinary: a thin ferroelectric layer at its surface. This layer possesses natural electric polarization that can be reversed by applying an external electric field—much like flipping the poles of a magnet. This ferroelectric behavior represents a fascinating property where the ice crystal structure becomes spontaneously polarized, creating regions of positive and negative charge that can be manipulated.
Above -113°C and continuing all the way up to ice’s melting point at 0°C, a different mechanism takes over. Ice demonstrates flexoelectricity, which generates electrical charges when the material experiences bending, stretching, or other mechanical deformation. This flexoelectric response occurs across the much broader temperature range that includes most natural Earth conditions where ice exists.
Understanding the Temperature-Dependent Transition
The transition between these two electrical mechanisms represents a fundamental shift in how ice responds to mechanical stress. When temperatures drop below -113°C, the surface ferroelectric layer becomes the dominant electrical response system. At these extreme temperatures, the ice crystal structure reorganizes to create the spontaneous polarization characteristic of ferroelectric materials.
As temperatures rise above this threshold, the ferroelectric properties diminish, and flexoelectricity becomes the primary mechanism. This transition explains why ice behaves differently under stress in various environmental conditions. The flexoelectric response that operates at warmer temperatures is particularly relevant for understanding electrical generation in natural settings like glaciers, where ice experiences constant mechanical stress from movement and pressure changes.
This temperature-dependent behavior has significant implications for comprehending ice’s full electromechanical properties. Researchers find that understanding these dual mechanisms helps explain various electrical phenomena observed in ice formations across different environments.
The ferroelectric mechanism at extremely cold temperatures operates through a different physical principle than flexoelectricity. While flexoelectricity generates charges through mechanical deformation gradients, ferroelectricity involves the alignment and reversal of spontaneous polarization within the crystal structure. This means that below -113°C, ice can maintain electrical polarization even without continuous mechanical stress.
Scientists have observed that this dual-mechanism behavior makes ice unique among common materials. Most substances exhibit only one primary electrical response to mechanical stress, but ice’s temperature-dependent transition between ferroelectric and flexoelectric properties creates a complex electrical behavior profile.
The practical implications of this discovery extend beyond laboratory curiosity. Understanding how ice generates electricity through both mechanisms helps explain atmospheric electrical phenomena, particularly in extreme cold environments where both mechanisms might operate simultaneously during temperature fluctuations.
This research also reveals why previous studies of ice’s electrical properties sometimes produced conflicting results. NASA scientists find that temperature variations during experiments could have unknowingly shifted ice between its two electrical response modes, leading to different measured outcomes.
The ferroelectric layer that forms below -113°C is remarkably thin, existing primarily at the ice surface rather than throughout the bulk material. This surface-dominated behavior contrasts with the flexoelectric response, which occurs throughout the ice volume when mechanical stress is applied. The combination of these two mechanisms creates a sophisticated electrical response system that adapts to temperature conditions.
Future research into ice’s dual electrical mechanisms could lead to better understanding of electrical phenomena in space environments, where temperatures regularly drop well below -113°C. Stanford University professor argues that such discoveries about fundamental material properties continue to reveal unexpected complexities in seemingly simple substances like water ice.
How Ice Compares to Other Electric-Generating Materials
Ice’s newly discovered ability to generate electricity through flexoelectricity represents a fascinating departure from conventional electric-generating materials. Unlike traditional piezoelectric substances such as quartz and ceramics, ice produces electrical charge specifically through bending and stretching motions rather than compression or vibration.
Key Differences in Electrical Generation Mechanisms
The fundamental distinction lies in how these materials respond to physical stress. Consider these primary differences:
- Quartz and ceramics rely on piezoelectricity, generating charge when compressed or subjected to vibrational forces
- Ice utilizes flexoelectricity, creating electrical potential through bending and stretching movements
- Saline ice demonstrates amplified streaming flexoelectricity, producing significantly stronger electrical output due to its salt content
- Traditional piezoelectric materials require direct pressure application, while ice responds to more varied mechanical deformations
This unique mechanism makes ice particularly relevant for understanding natural phenomena. Thunderstorms involve massive ice movements and deformations that could contribute to electrical charge buildup in ways scientists hadn’t previously recognized. The discovery suggests that ocean waves and other natural ice formations might play unexpected roles in atmospheric electrical activity.
Quartz has dominated sensor technology and capacitor applications because of its reliable piezoelectric properties under compression. These materials excel in environments requiring precise electrical responses to mechanical pressure. Ice’s flexoelectric behavior opens entirely different possibilities, particularly for applications involving natural ice formations or engineered systems that can harness bending motions.
Saline ice presents the most intriguing comparison point. Its enhanced streaming flexoelectricity creates electrical outputs that surpass regular ice by substantial margins. This amplification occurs because salt ions within the ice structure interact differently with mechanical stress, creating more pronounced charge separation during deformation.
The practical implications extend beyond laboratory curiosity. While piezoelectric materials have found homes in everything from advanced robotics to medical devices, ice’s flexoelectric properties could enable entirely new energy harvesting approaches. Natural ice formations experience constant bending and stretching from wind, temperature changes, and gravitational forces.
Traditional electric-generating materials require manufactured components and controlled environments. Ice exists abundantly in nature and responds to environmental forces that occur continuously. This accessibility distinguishes ice from engineered piezoelectric systems that need specific installation and maintenance protocols.
The research reveals that celestial bodies with ice formations might generate electrical activity through natural flexoelectric processes. This possibility expands our understanding of electrical phenomena beyond Earth-based applications and traditional material science boundaries.
Sources:
Phys.org – Scientists find ice generates electricity when bent, a clue to how lightning forms
Popular Mechanics – Ice Generates Electricity
ICN2 – ICN2 scientists find ice generates electricity when bent, a clue to how lightning forms
BIST – Salty ice: a new way to generate electricity in extreme conditions
